Door Hinge Adjustments
Information

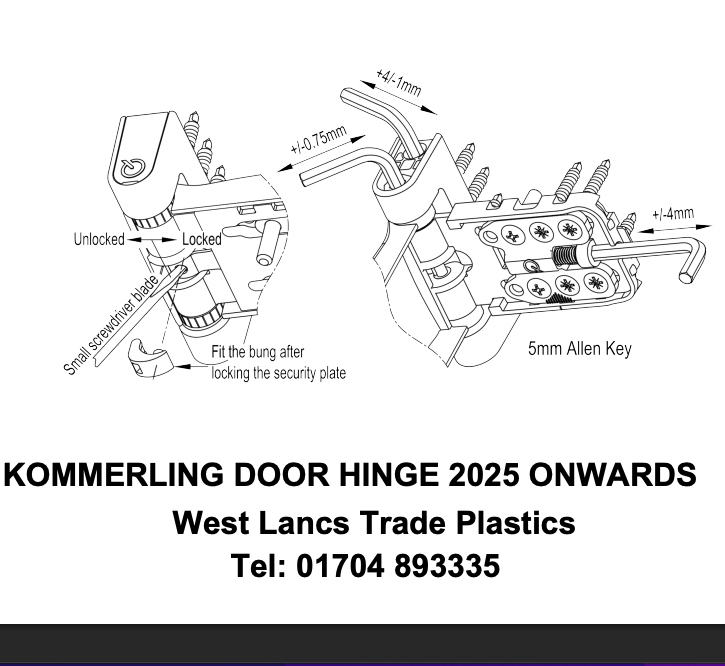

All 3D adjustment is carried out using a 5mm Allen key.
In its nominal position, the hinge has a +4/-1 mm height adjustment, accessible from the top of the frame bodypiece.
In its nominal position, the carriage plate has +/- 4 mm lateral adjustment, accessible when the sash cover is open.
In its nominal position the eccentric pin has +/- 0.75 mm compression adjustment accessible from the top of the frame body piece.
